Ferrari's Revolutionary 'Manuale By-Wire' System: How It Works

Key Takeaways

• Ferrari’s 12Cilindri Manuale features a ‘Manuale By-Wire’ system, which simulates a manual transmission without mechanical linkages.
• The system uses a shift lever and clutch pedal, but they are not mechanically connected to the transmission.
• The powertrain is unchanged, with a naturally aspirated 6.5-liter V12 engine producing 819 horsepower.
• The system uses electronic signals to command the eight-speed dual-clutch transmission.
• The shifter and clutch pedal are designed to feel like a traditional manual gearbox.

What is Ferrari’s ‘Manuale By-Wire’ System?

Ferrari’s ‘Manuale By-Wire’ system is a complex piece of engineering that simulates a manual transmission without mechanical linkages. The system uses a shift lever and clutch pedal, but they are not mechanically connected to the transmission. Instead, every movement is converted into an electronic signal, which then commands the eight-speed dual-clutch transmission.

This system allows for a more precise and efficient transmission, while also providing the driver with a more engaging and immersive experience. The shifter and clutch pedal are designed to feel like a traditional manual gearbox, with a satisfying ‘click’ and resistance curve.

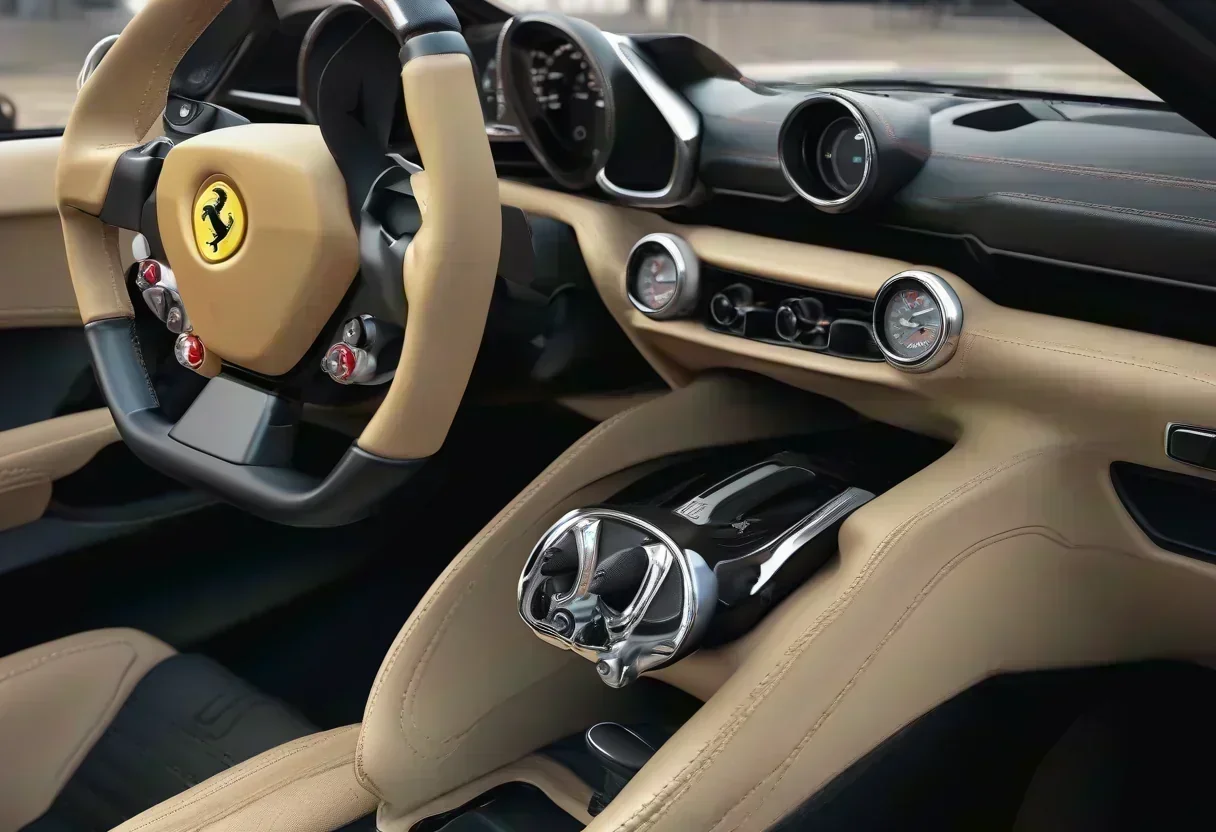

How Does the Shifter Work?

The shifter is designed to feel mechanical, with a block of high-strength steel machined from solid billet to incredibly tight tolerances. The mechanism uses two separate rotational movements: one selects the gear, while the other engages it. A system of eccentric rollers automatically returns the lever to the center position.

The real magic happens at the point of engagement, where a specially profiled rotating drum works with a preloaded mechanism to build resistance before suddenly releasing it. This creates the satisfying ‘click’ you feel through the shift knob, recreating the tactile sensation of a traditional manual gearbox.

How Does the Clutch Work?

The clutch pedal is fully by-wire, with an angular position sensor constantly measuring pedal travel and translating the driver’s input into hydraulic commands that operate the DCT’s clutch packs. The challenge was making an electronic clutch pedal feel like a real one.

Ferrari solved this issue with a passive mechanical system consisting of a preloaded spring, a cam, and a roller. Together, they recreate the resistance curve of a conventional clutch, building effort as you release the pedal before dropping away at the engagement point.

What is the Driving Experience Like?

From behind the wheel, the 12Cilindri Manuale behaves much like a traditional manual. Nail your timing and shifts are smooth. Miss it, and you’ll feel a jolt—or even stall the engine. The system allows for a proper heel-and-toe downshift, matching revs by blending the throttle and brake.

Switch to automatic mode, and the DCT handles the shifting on its own. Even then, you can preselect gears with the lever, and the digital instrument cluster previews how the shift will affect engine speed before it happens.

Frequently Asked Questions

Q: Is the 12Cilindri Manuale a true manual transmission?

No, the 12Cilindri Manuale features a ‘Manuale By-Wire’ system, which simulates a manual transmission without mechanical linkages.

Q: How does the shifter work?

The shifter uses a block of high-strength steel machined from solid billet to incredibly tight tolerances, with a system of eccentric rollers automatically returning the lever to the center position.

Q: Can you still perform a proper heel-and-toe downshift?

Yes, the system allows for a proper heel-and-toe downshift, matching revs by blending the throttle and brake.
